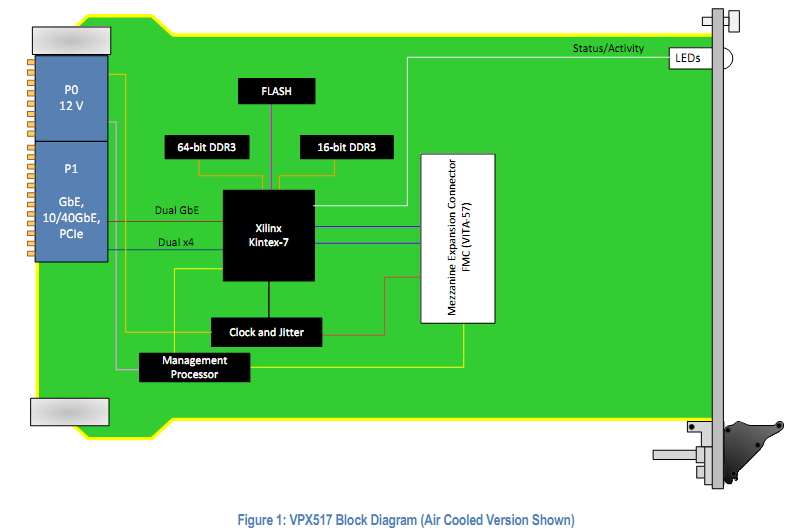

The VPX517 is a FPGA Carrier (VITA 46) with an FMC (VITA 57) interface. The unit has an on-board, re-configurable FPGA which interfaces directly to the FMC DP0-9 and all FMC LA/HA/HB pairs. The FPGA has interface to two DDR3 memory channels (64-bit wide and 16-bit wide) for a total of 2.5GB. This allows for large buffer sizes to be stored during processing as well as for queuing the data to the host.
The module supports dual GbE and, dependent on FPGA code loaded, PCIe up to Gen3 (dual x4 or x8 lane), or dual SRIO, 10GbE or 40GbE on P1.
The VPX517 provide health management through the dedicated management processor (including temp, voltage, FRU info, etc.).
The unit is available in a range of temperature and shock/vib specifications per ANSI/VITA-47, up to V3 and OS2.
Key Features
Ø3U FPGA carrier for FPGA Mezzanine Card (FMC) per VITA-46 and VITA-57
ØXilinx Kintex-7 410T FPGA in FFG-900 package
ØHigh-performance clock jitter cleaner
ØVHDL reference design with source code
ØProtocols such as PCIe, SRIO, 10GbE/40GbE, etc. are FPGA programmable
Ø2.5 GB of DDR3 Memory
ØCompatible with VadaTech and 3rd party FMCs
ØDedicated health management Processor
