The FMC214 is a FPGA Mezzanine Card (FMC) per VITA 57.1 standard, offering small footprint and low power dual fully featured wideband Rx/Tx channels.

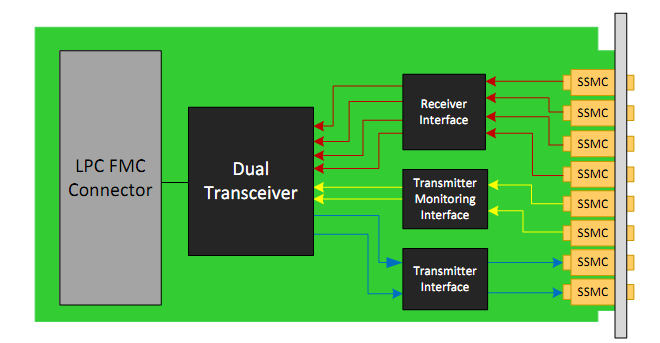

The FMC214 combines RF front end, frequency synthesizers for Rx and for Tx, mixed signal baseband section and flexible digital interface to host processor through the LPC connector. The FMC214 operates within the 70 MHz to 6.0 GHz frequency range, covering most licensed and unlicensed bands, and provides an instantaneous bandwidth programmable from 200 KHz to 56 MHz. The clocking is via the FMC connector or an internal clock. Its features make the FMC214 an ideal choice for the development and/or deployment of advanced RF solutions. This Multiple Input Multiple Output (MIMO), module is the most versatile FMC in the market.
Utilizing an AD9361 RF transceiver, the chip offers high performance noise figure and linearity. Each receive (RX) subsystem includes independent automatic gain control (AGC),quadrature correction, dc offset correction, and digital filtering.
Key Features
ØDual complete transceiver signal chain solution using Analog Devices AD9361 transceiver
ØFrequency range 70 MHz to 6 GHz with instantaneous bandwidth from 200 kHz to 56 MHz
ØMIMO transceiver is Time Domain Duplex (TDD) and Frequency Domain Duplex (FDD) compatible
ØSupported by DAQ Series™ data acquisition software
ØFPGA Mezzanine Card (FMC) per VITA 57
ØMultiplexed 2x RF inputs on each RF channel
ØOn-board clocking or external clock with multi-cards ynchronization capability
ØLow Pin Count (LPC) 160-pin connector
