CM044
CM044
简介: MicroTCA.4 Virtex-5 Data Processing “CoBo” AMC
数据表: http://www.vadatech.com/media/CM044_CM044_Datasheet.pdf
产品详情

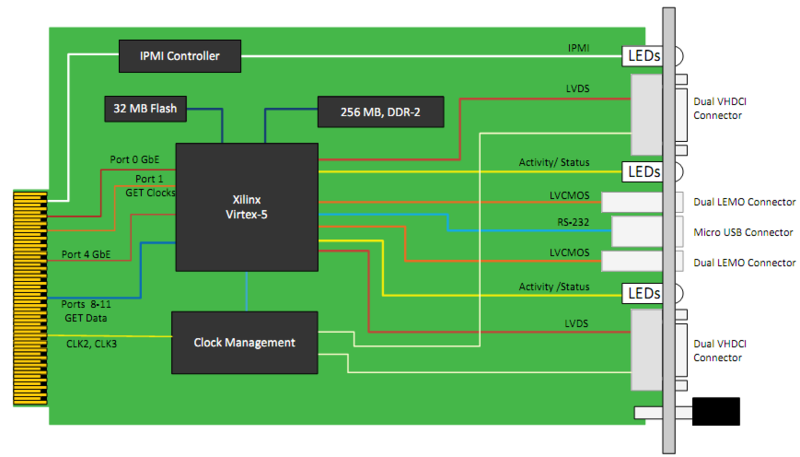

The CM044 AMC-based Concentration Board (CoBo) is a high-performance data processor designed according to the PICMG MTCA.0 specifications. The board is targeted for General Electronics (GET) for Time Projection Chamber (TPC) project.  The AMC module intelligently reads, reduces and concentrates the high data throughput of TPC detectors.  The CoBo AMC interfaces to external ASIC ADCs, timing boards, controller and storage farms.  The module comes in the double module, full-size AMC format with 1GbE on ports 0, 4.  Port 1 is used for GET Clocks and Ports 8-11 are used for GET Data.

Key Features

ØData Processing CoBo (Concentration Board) in AMC format

ØDouble module, full-size compliant to MicroTCA.0

ØVirtex-5 FPGA (XC5VFX100T in FFG 1136 package)

Ø256 MB DDR3 DDR2 SDRAM and 32 MB Flash

ØDual VHDCI, two dual-coax LEMO, and one micro USB connector via the front panel

ØPort 0 and Port 4 for GbE

ØPort 1 for GET Clocks

ØPorts 8-11 for GET Data

ØActivity and MGT LEDs

ØSlow/Fast control of ASIC ADC

ØPartial reconfiguration and firmware upgrade support

ØAdvanced diagnostic, monitoring and debugging
