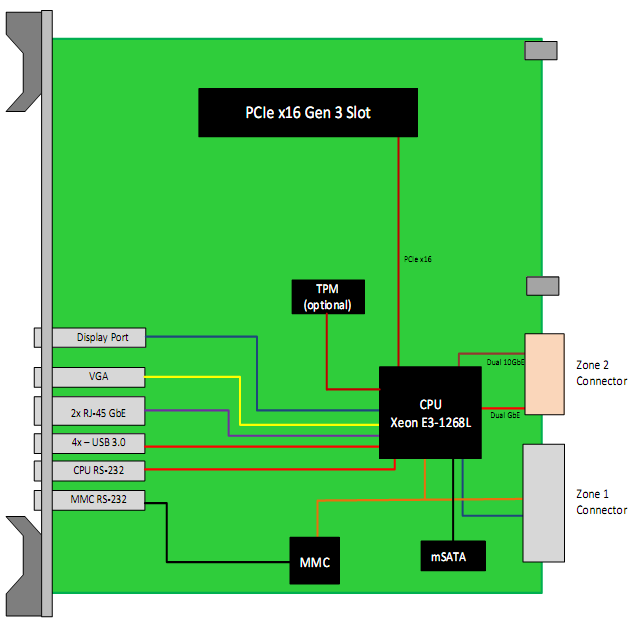

The ATC122 is a Carrier Module with an on board x16 PCIe Gen3 slot to accept any standard PCIe edge type module. The modules has dual 10GbE going to the Fabric channels and dual GbE to the base channels. It comes with 32GB of ECC memory. It has four USB 3.0, DP, VGA, RS-232, and dual GbE that are on the front panel. The ATC122 has an option for the TPM (Trusted Platform Management).
The ATC122 can accommodate a dual width PCIe module with the dual width ATCA front panel option, expanding the board pitch from 1.2” to 2.4”.
Key Features
ØProcessing Carrier w/ a PCIe edge Module
ØXeon E3-1268L V3 Processor
Øwith 32GB ECC
Øx16 standard PCIe Gen 3 slot
Ø2.3GHz Quad Core
Ø3.3GHz Turbo Frequency
ØDual 10GbE to Fabric channels
ØDual GbE to Base channels
ØDual GbE to the front panel
ØDisplay Port (DP) and VGA
ØRS-232 to the front panel
ØQuad USB 3.0 on the front panel
ØOn board mSATA socket
ØTPM (Optional)
ØRoHS compliant
