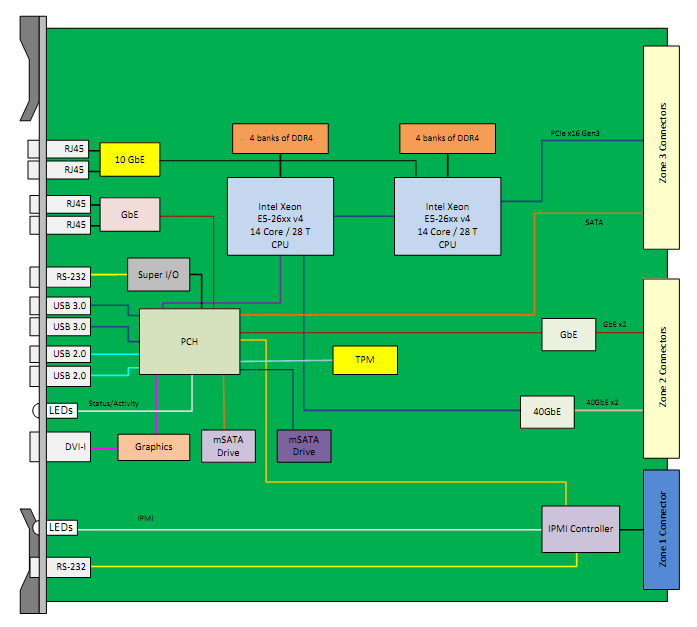

The ATC126 is a high performance ATCA processor blade featuring dual 14 core Intel® Xeon® processor E5-2658 v4, E5-2680 v4 or E5-2648L v4, with eight banks of memory up to 256 GB DDR4 memory. Versatile connectivity includes two 10/40GbE Fabric Interfaces, dual GbE Base Interfaces, dual front panel GbE egress ports, front panel dual RS-232 and USB 3.0/2.0 ports and front panel DVI-I connector. On-board mSATA storage is available for local boot.
The ATCA blade is PXI-boot capable via any of the on-board Ethernet interfaces. It offers Serial over LAN (SOL) utilizing Hardware Random Number Generation (RNG) to form a secure session. The ATC126 has dual redundant BIOS-boot capability with multiple WDT for fail-safe, before and after OS boot.
The ATC126 can be ruggedized for harsh environments and comes with conformal coating per customer ordering options.
Key Features
ØDual 14-core Intel® Xeon® E5-2658, 2680 or 2648L v4 processors
ØEight banks of DDR4 for up to 256 GB memory
Ø10/40GbE Fabric channels
ØDual 10/100/1000Base-T Base Channels
ØDual 10/100/1000Base-T egress ports
ØDual 10GbE Copper
ØTwo USB 2.0 and two USB 3.0 front panel ports
ØGraphics and RS-232 front panel ports
ØIPMI Management Controller with Serial Over LAN capabilities (SOL)
ØTrusted Platform Module (TPM)
ØBIOS redundancy boot with multiple Watch Dog Timers (WDT) for fail-over, before and after BIOS boot
