VPX-TJ1

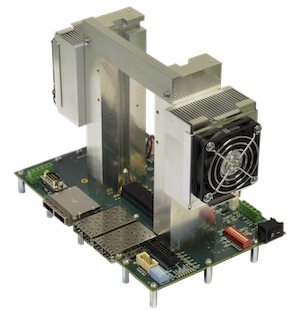

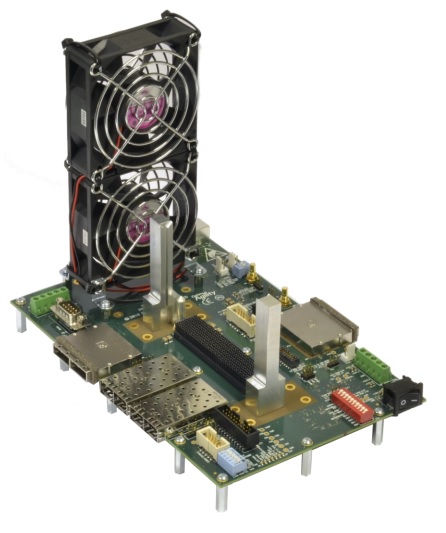

简介: VPX桌面开发平台
数据表: http://www.commagility.com/images/pdfs/datasheets/CA-VPX-TJ1.pdf
产品详情

The CommAgility  AMC-TJ1 is a comprehensive bench-top test harness for  AdvancedMezzanine Cards, allowing easy configuration and access to external AMC ports. There are two test slots, with functions as follows:Slot 1 is designed for JTAG testing. All AMC ports (except Ethernet) are loop-back connected on the PCB  which is ideal for testing AMCs and their external interfaces in a production environment.

Slot 2 is designed for functional testing. This slot has all AMC ports connected to headers or off-board connectors, e.g. SFP modules for Ethernet, SATA connectors and Infiniband style ports for the fat pipes and extended options. This allows an AdvancedMC module to be fully functionally tested by connecting appropriate cables and equipment to the AMC-TJ1.

Alternatively, by using 2 x AMC-TJ1 and cables, a full back-to-back functional test of two AdvancedMC modules can be performed.


Key Featurs

  • Supports up to 6.25Gbaud serial data on VPX P1 Lanes 9-12

  • Integrated dual Ethernet interface to VPX Control Plane with standard RJ45 connectors

  • VPX slot supports VPX and OpenVPX 0.8” and 1.0” pitch cards

  • Open access to VPX card for easy probing and debug

  • 5A or 10A current limit at 12V, supports cards up to 120W

  • Power status LEDs give visual indication of board state

  • Current monitoring outputs
