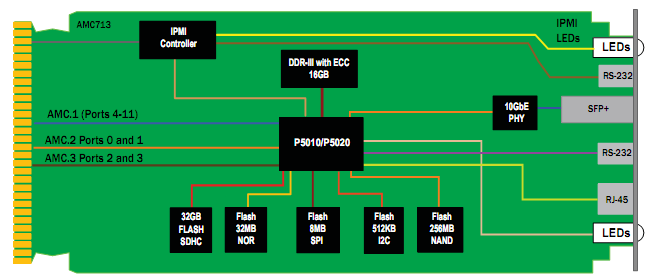

The AMC713 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMCTM (AMC) form factor based on the Freescale P5010 (single core) and P5020 (dual core) processors. The module follows the AMC.1, AMC.2 and AMC.3 specifications.
The module front panel provides GbE via RJ-45, 10 GbE via SFP+ and RS-232 via Micro USB connectors.
The module provides dual x4 PCIe on ports 4-7 and 8-11 per AMC.4, the PCIe interface is configurable as Host or Agent mode. Dual GbE on ports 0-1 per AMC.2 to the rear. It routes dual SATA to ports 2 and 3 per AMC.3.
The module has option for up to 16 GB of DDR-3 memory with ECC, 32 MB NOR flash, 8 MB SPI flash, 512 KB I2C flash, 256 MB NAND flash and optional 32 GB SDHC.
The AMC713 has a Serial over LAN (SoL) with a true hardware Random Number Generator.
Key Features
ØProcessor AMC with Freescale QorIQ P5010/P5020
ØUp to16 GB DDR3 with ECC
ØPCIe Gen2 on ports 4-7 and 8-11 per AMC.1
ØConfigurable as Host (Root Complex) or Agent
Ø10GbE with SFP+ interface
ØDual GbE per AMC.2 on ports 0-1
ØDual SATA per AMC.3
ØSingle-module, mid-size per AMC.0
ØOption for up to 32 GB SDHC
