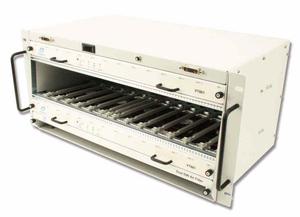

The VT861 is a 5U μTCA chassis that provides 12 AMC full size slots that can accept any AMC.1, AMC.2, AMC.3 and/or AMC.4. It provides CLK1, CLK2, and CLK3 to each slot. The VT861 has full redundancy on its Cooling Units. The CLK3 option can be configured for the Fabric clock, Telecom clock or Fabric B. There is an option for Port 2 and 3 to be directly connected among the adjacent AMCs or to the fabric B (AMC.3 SATA/SAS switch option on the MCH).
Benefits
Utilizes VadaTech’s proven 2nd generation shelf manager
Design utilizes proven VadaTech subcomponents and engineering techniques
Electrical, mechanical, software, and system-level expertise in house
Key Features
μTCA System Platform 19” x 5U x 10.5” deep (with handles 12” deep)
Single MicroTCA Carrier Hub (MCH), dual Cooling Units and single Power Module
Up to twelve AMCs: full size
Radial I2C bus to each AMC
Single Star passive 22 layer backplane
1000W AC Power supply option
CLK1, CLK2 and CLK3
ESDJack at the top front
