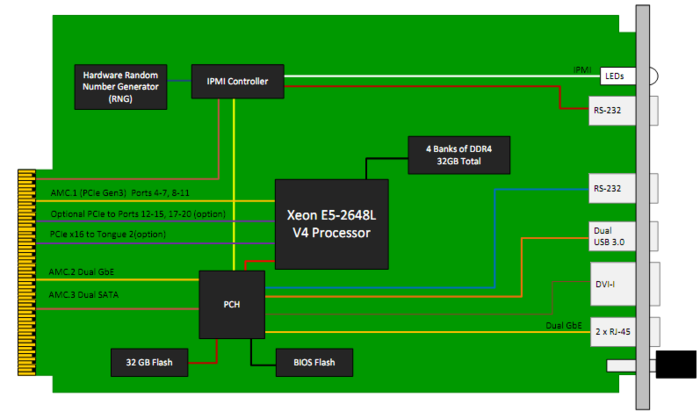

The AMC750 is a Processor AMC (PrAMC) in a double module, full-size AdvancedMC (AMC) form factor based on the Intel® Xeon E5-2648L v4 which has 14 Cores @ 1.8 GHz. The module follows the AMC.1 and AMC.3 specifications.
The module provides PCIe Gen3 x16 PinoutPlus™ on tongue 2, providing high-bandwidth connectivity to co-processors such as GPU, Cavium, Tilera, FPGA, etc (where supported by appropriate chassis such as VadaTech VT815). The use of the tongue 2 connector complies with the AMC.0 specification. Additional expansion is supported on the AMC750 with optional PCIe on ports 12-15 and 17-20.
GbE is provided on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. It also provides dual GbE to the front panel.
The AMC750 provides 32 GB of DDR4 memory with ECC and 32 GB of Flash via a SATA disk for the OS. The module has serial over LAN with hardware Random Number Generator (RNG) as seed generator for authentication. The BIOS allows booting from on-board Flash, off-board SATA, PXE boot and USB. There are dual USB for extended storage or peripherals.
Linux OS is standard on the AMC750, consult VadaTech for other options.
Key Features
Øwith PinoutPlus™
ØIntel® Xeon E5-2648L v4 (Haswell-EP)
ØPCIe Gen 3 on ports 4-7 and 8-11(AMC.1)
Øx16 PCIe Gen 3 via Tongue 2
Øoptional PCIe to ports 12-15, 17-20
ØVideo output via DVI-I connector
ØGbE to port 0 and 1, SATA to port 2 and 3 (AMC.3)
ØDual GbE to the front panel
ØFour banks of DDR4 memory with ECC
ØDouble module, full-size per AMC.0
ØOptional TPM (Trusted Platform Module)
ØSerial over LAN
ØIPMI 2.0 compliant
