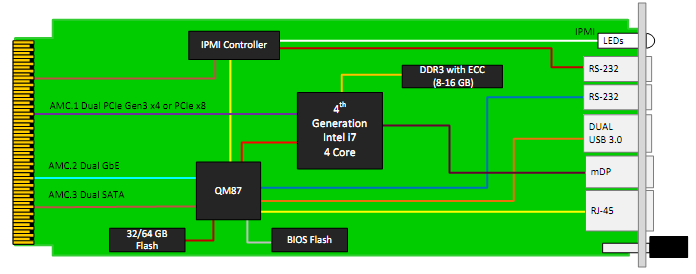

The AMC726 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMC (AMC) form factor based on the Intel® 4th generation Core i7 Processor (Haswell) with QM87 PCH. The module follows the AMC.1, AMC.2 and the AMC.3 specifications.
The module provides PCIe Gen3 x4 or single x8 on ports 4-11 per AMC.1, GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. It also provides GbE to the front panel.
The AMC726 provides 16 GB of DDR3 memory with ECC and 32/64 GB of Flash for the OS. The BIOS allows booting from on board Flash, off-board SATA, PXE boot, and USB. There are dual USB for extended storage or peripherals.
Linux OS is standard on the AMC726, consult VadaTech for other options.
Key Features
ØIntel® 4th Gen Core i7-4700EQ
Øwith QM87 chipset
ØPCIe Gen3 x4
Øon ports 4-7 and 8-11 or single PCIe x8 on ports 4-11 (AMC.1)
ØSerial over LAN
ØGbE to port 0 and 1 (AMC.2)
ØSATA to port 2 and 3 (AMC.3)
ØVideo output via mini DP connector
ØGbE to the front panel
Ø8/16 GB of DDR3 memory with ECC
Ø32/64 GB of Flash memory
ØIPMI 2.0 compliant
ØSingle module, mid-size (option for full-size) per AMC.0
