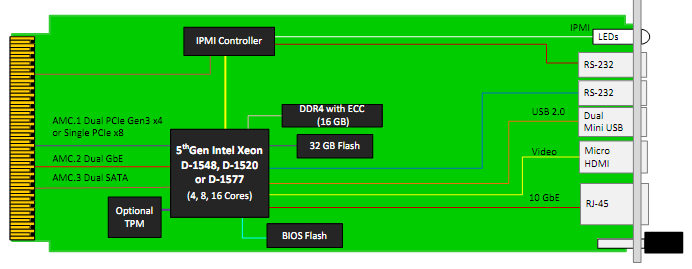

The AMC754 is a Processor AMC in a single module, mid-size based on the Intel® 5th generation Xeon 8-core D-1548 or 4-core D-1520 Processor (Broadwell). The efficient SoC design has low power consumption and integrated PCH technology. The module follows the AMC.1, AMC.2 and the AMC.3 specifications.
The module provides dual PCIe Gen3 x4 or single x8 on ports 4-11 per AMC.1, GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. It also provides 100 Mbit /1 GbE / 10 GbE to the front panel (the module can auto-negotiate down to 100 Mbit Ethernet but not 10 Mbit).
The AMC754 provides 16 GB of DDR4 memory with ECC and 32 GB of Flash for the OS. The BIOS allows booting from on board Flash, off-board SATA, PXE boot and USB. Thereare dual USB for extended storage or peripherals.
Linux OS is standard on the AMC754, consult VadaTech for other options.
Key Features
ØProcessor AMC Intel® 5th Gen Xeon
ØD-1520, D-1548 or D-1577 (Broadwell) SoC
ØPCIe Gen3 x4 options
Øon ports 4-7 and 8-11 option or Single PCIe x8 on ports 4-11 (AMC.1)
ØGbE to ports 0 and 1 (AMC.2)
ØSATA to ports 2 and 3 (AMC.3)
Ø10 GbE to the front panel
ØVideo output via micro HDMI connector
ØSingle module, mid-size per AMC.0 (option for full-size)
Ø16 GB of DDR3 memory with ECC
Ø32 GB of Flash memory
ØTPM (optional)
ØIPMI 2.0 compliant
