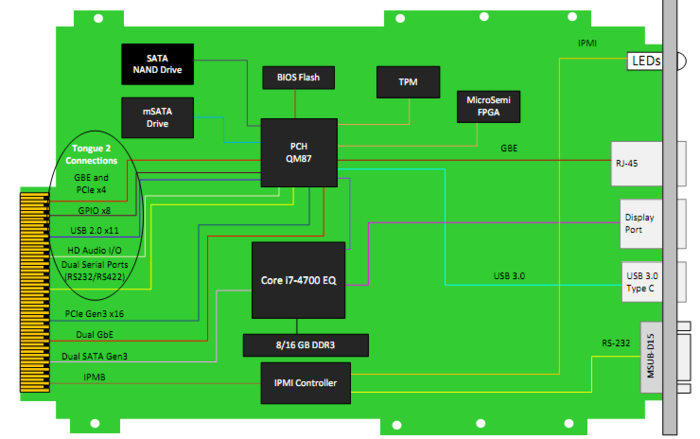

The AMC728C is a Processor AMC (PrAMC) in a double module, mid-size AdvancedMC (AMC) form factor based on the Intel next generation Core i7 Processor (Haswell) with QM87 PCH. The module follows AMC.1 (PCIe), AMC.2 (GbE) and AMC.3 (storage) specifications.
The module provides PCIe Gen3 x16 on ports 4-15 and ports 17-20, dual GbE on ports 0 and1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. It also provides GbE, USB, DP and Management RS-232 to the front panel. On the PinoutPlus, the module provides PCIe x4, dual RS-232/RS-422, USB and Audio In/Out as well as GPIO.
The AMC728C has up to 16 GB of DDR3 memory with ECC and 32 GB of Flash for OS. The module also provides an mSATA socket for additional storage. The module has Serial over LAN (SoL) with hardware Random Number Generator (RNG) as seed generator for authentication. The BIOS allows booting from on board NAND, off board SATA, PXE boot aswell as USB.
The AMC728C, in addition, has a MicroSemi FPGA (MS2S090TS-1FG484I) for secure bootand encryption code.
Linux OS is standard on the AMC728, consult VadaTech for other options.
Key Features
ØProcessor AMC with Intel® 4th Generation Core i7-4700EQ (Haswell) with QM87 chipset
ØUp to 16 GB of DDR3 memory with ECC and 32 GB of Flash memory
ØPCIe Gen3 x16 on ports 4-15 and 17-20
ØPinoutPlus (Tongue 2 connector) for additional I/O
ØOn board mSATA device
ØOn board MicroSemi SmartFusion2 FPGA for secure boot and authentication (M2S090TS-1FG484I)
