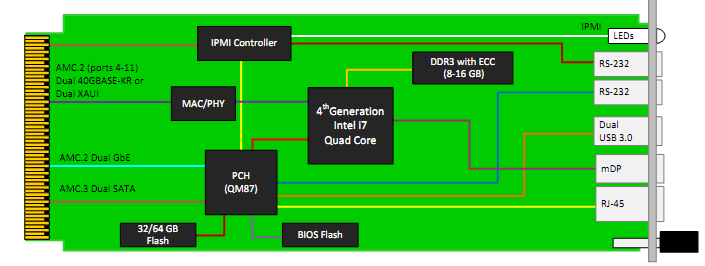

The AMC727 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMC (AMC) form factor based on the Intel® next generation CoreTM i7 Processor (Haswell) with QM87PCH.
The module follows the AMC.2 and the AMC.3 specifications.The module provides dual 40GbE or dual XAUI on ports 4-11 per AMC.2, dual GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. It also provides GbE to the front panel.
The AMC727 has up to 16 GB of DDR3 memory with ECC and 32/64 GB of Flash for OS. The BIOS allows booting from on board NAND, off board SATA, PXE boot as well as USB. There are dual USB 3.0 type C connector for extended storage or peripherals.
Linux OS is standard on the AMC727, consult VadaTech for other options
Key Features
ØIntel® 4th Gen Core i7-4700EQ (Haswell)
Øwith QM87chipset
Ø40GbE or 10GbE on ports 4-7 and 8-11
ØGbE to port 0 and 1 (AMC.2)
ØSATA to port 2 and 3 (AMC.3)
ØVideo output via mini DisplayPort
ØGbE to the front panel
Ø8/16 GB of DDR3 memory with ECC
Ø32/64 GB of Flash memory
ØIPMI 2.0 compliant
ØSingle module, mid-size (option for full size) per AMC.0
